Fibreprep SPM 600

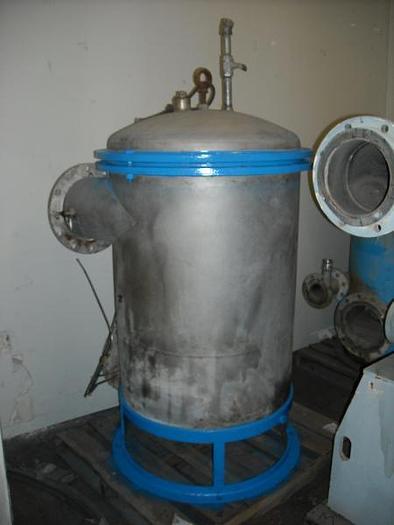

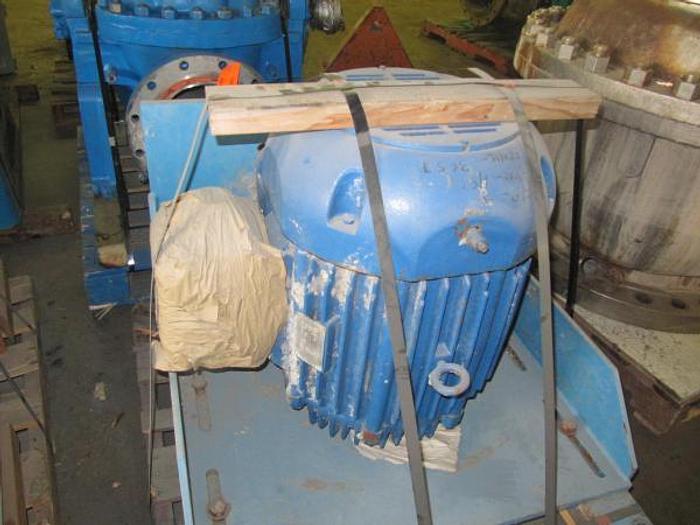

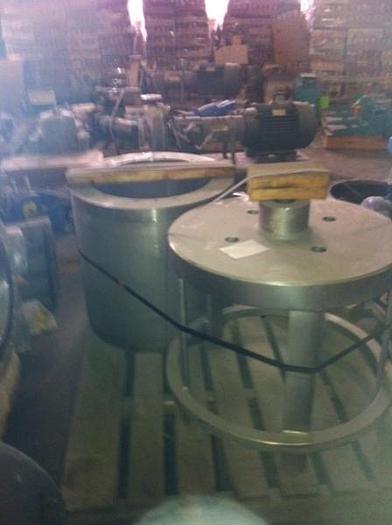

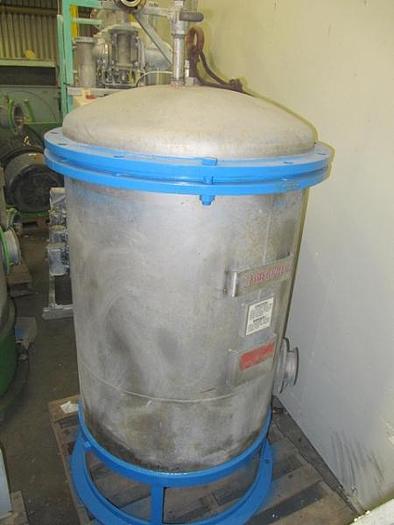

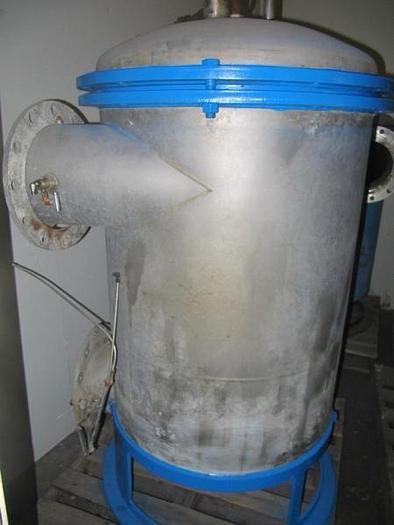

FibreprepModelSPM600 01.4T8/2.5mm 7.7%openarea.,50-120TPD With40HPMotor 316SS TheSPMpressureScreenincludesacylindricalplatecontainedinapressurizedcase,arotatingfoilassembly,aunitizedbase,sheavesandbelts,motormountingbracketonsliderailsanda200hpdrivemotor. Thepressurizedcaseisessentiallysflangedcylinderwithadomedtopclosure.Thestandardcasehasapressureratingof60psi(4bars).Thereare3connectionstothemainbodyofthecase.Theyarejoinedtothecasecylinder.Thelargerupperconnectionisforincomingstockwhilethesmallerconnection,nearthebottomisanoutletforrejects.Thelowerportionofthecaseisforcollectingacceptedstock(accepts)afteritpassesthroughthescreenplate.Theacceptsoutletconnection,inthedomeofthecase,bleedsentrappedairfromthepressurescreen. ThedrivemotorismountedverticallyonanL-shapedmotorbasewhichmountsonasliderail.SmatchedsetofV-beltsconnectsthemotorandpressurescreen. Incomingstocktobescreened,entersthecasethroughtheupperinletconnectionandisimmediatelyacceleratedbythefoilassemblysweepingaroundthescreen.Theresultantcentrifugalforcethrowsheavydensecontaminantsawayfromthescreenplateandagainstthesidesofthecasewheretheyareflushedoutthroughtherejectsoutlet.Stockflowisinward(centripetal)throughthescreenplate.Acceptedstockcollectedinthecentercompartmentflowsdownwardandouttheacceptsconnection.Duetotheactionofthefoilassembly,thetangentialvelocityacrossthesurfaceoftheplateexceedstheinwardcentripetalflowvelocitybyafactorofabout10.Thiscausesstocktoapproachthescreenplateatanextremelylowangleandsignificantlyreducestheeffectivesizeofthescreenplateopeningsand,therebyincreasesscreeningefficiency. Rejectmaterialmigratesspirallydownwardthroughtheoutercompartmentandouttherejectsconnection. Thescreenidessentiallyselfcleaningbecauseofthehydrodynamiccharacteristicsofthehydrofoil.Eachfoilgeneratedahighnegativepressurepulsethatnotonlybreaksupthefibermatformedovertheplate,butalsoliterallypullslodgedparticlesfromthescreenplateanddepositstheminthefastmovingtangentialflowaroundthescreen.Ifparticlesaredense,centrifugalforceslingsthemtotheouterwallwheretheyarecollectedattherejectsoutlet. Theventatthetopofthehousingbleedsoffalowflowofstockand,withit,anyairthatmaybeentrainedintheinletstream.Somelightfloatingparticlesmaybecarriedoffwiththisstreamandshouldberejected,Theventmustbeopenduringstartupofthescreen,butmaybeclosedorthrottledduringoperationaftertheinitialairinthesystemhasbeenbledoff.
