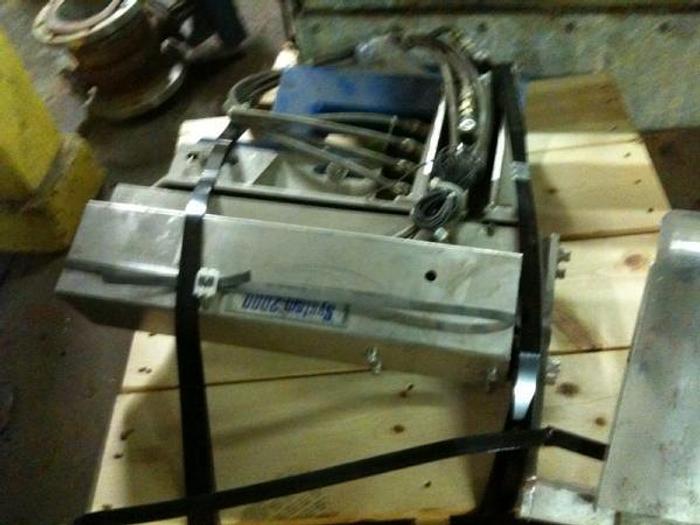

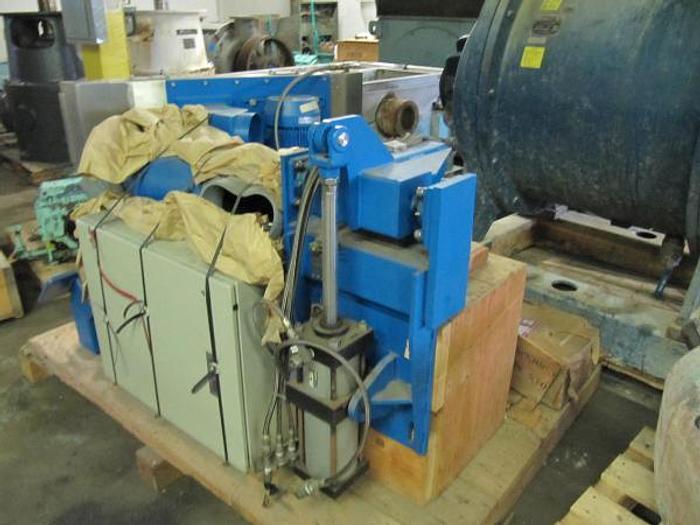

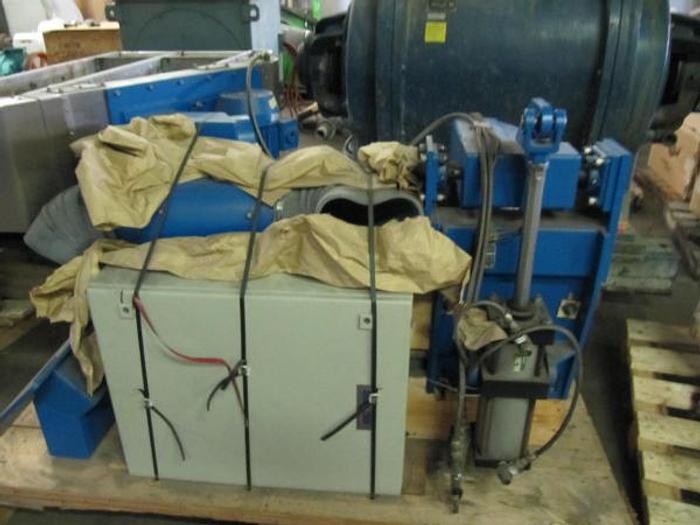

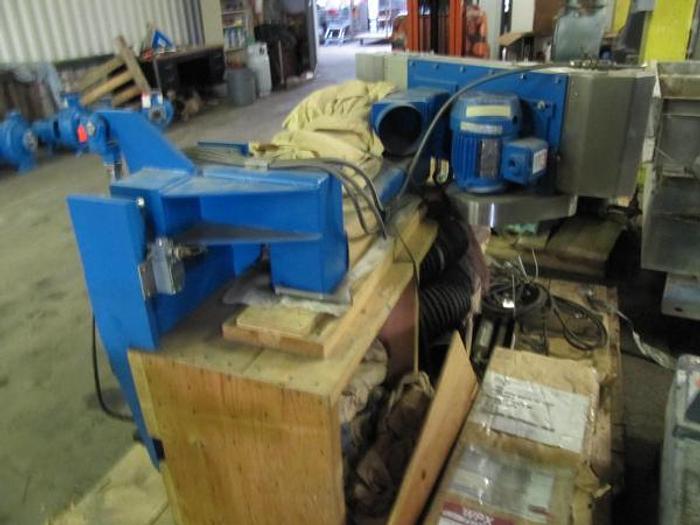

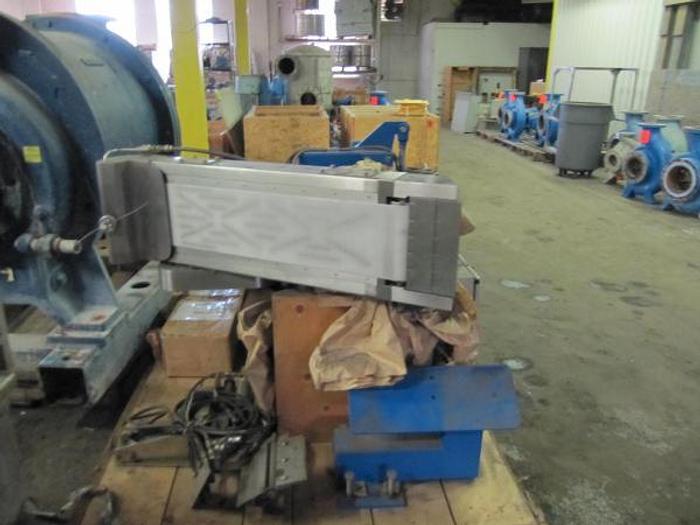

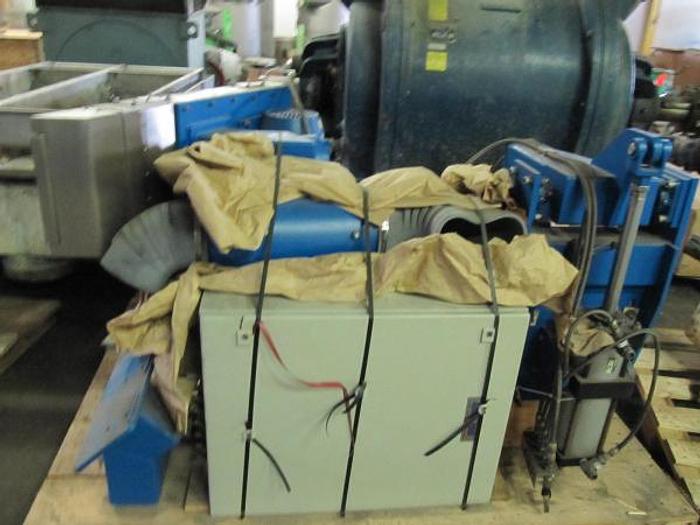

(NEW) Tail Threader System 2000 for Size Press – SOLD!

Description

TailthreaderforSizepress (New) Dryertosizepressropes SystemSpecifications Speedasshipped=25HZ-1065ft./min Speedasshipped=75HZ-3300ft./min Threader#1 ElectriceMotor-2hp,3600rpm,3ph,460VAC,TEFC,Frame145T MotorSpeedat60HZ-3569RPM VeeBelt-AseriesA27 VeeBeltSheeves-Adjustable,1VP34,Fixed-AK41 PulleyBearings:FafnirNT,RCJT,selfaligning,pre-lubed,StainlessSteel/nickelplatemetallurgy VacuumFan EdgeDoctor DoctorBlades:EsscotypeRJG,Eli-Fiberline,0.06"x3"x8"bevelled,EsscotypeRJG,Spec#176or#1730.050"x3"x8"bevelled. SWETailBreaker:1/2NPTconnection,16cfmIngersol-RandMotor,22series,NumaticsL22L-04Lubricator,0.093"x14"Longwireropec/wFusedEnds. ThreaderStructure&PivotMechanism PivotBearings:4boltFafnir#RCJ1-1/4NTbearing,TorringtonNTA1220Needlerollerthrust&TorringtonTRC1220thrustwashers,Fafnirsphericalplainbrg,1",10SF16 Pneumatics Threader#1pivotCylinder:NumaticsASeries,NFPAMP2aircylinder4"x12"Stroke.Part#T4AT-12A6E-CAA0,X1=8" PneumaticEnclosure:Rittal.SeriesAE1076,QTY1,760x600x210mm(30"x24"x8"),DWGB-1026-00-05-01forcomponentspecifications. ElectricalSystemSupply Pushbuttonstation:Customersupplied,10"x12"x5"(typicalsize),refdrawing:B-1021-00-06-04 ThisthreaderwastobeusedforPaperGrade40-120lbs/3300Sq.feetLinerBoard Threaderisnew inoriginal crates Conveyorandairfoiltailthreaderwithvacuumassistedconveyorandairfoils. Forfunctionssuchasbreakingthetailordirectingthetailfromdryercanorcalendarrolltothenextthreadingstage.Controlofthesystemisinitializedthroughthepushbuttonstation.

Specifications

Condition	Used
Stock Number	439
Papermachinespeed	1000to3000fpm
Recommendedbeltspeed	Machinespeedplus15%approx.
Speedrangeat60hz	2164ft/min-3303ft./min
Conveyorbeltspecification	DS741/21000CFM(DSCI)73.5"Long
Fanmakeandmodel	Dayton,ModelE3555T,directdrive
Maximumairflow	3,000CFM
Staticpressure	7"StaticPressure
Motorspeed	2400RPM
Motorpower	5hp,3ph,460VAC
Inletconnection	200mm
Vacuumhose	CWCFlexhaust,8"6'
Autodamper	AirCyl.operated
Doctorholder	EsscotypeRJG,StainlessSteel
Construction	CarbonSteel,primedandepoxypainted.
Edgedoctorextend/retract	NumaticsSH20010LB16Ds4LinearSlide,2"borex10"stroke.
Edgedoctorloadingcylinder	NumaticsMSeries,2000D02-03A,2"borex3"stroke.
Vacuumdampercylinder	NumaticsMSeries,1062D02-02A-00,1-1/16"x2"stroke.
Transferairjets	1/2NPTconnection
Compresesairsupply	Instrumentair@90psigmin.
Mainpower	460?VAC,60HZ,3ph.
Fanpowersupply	120VAC,60HZ,1,15A
