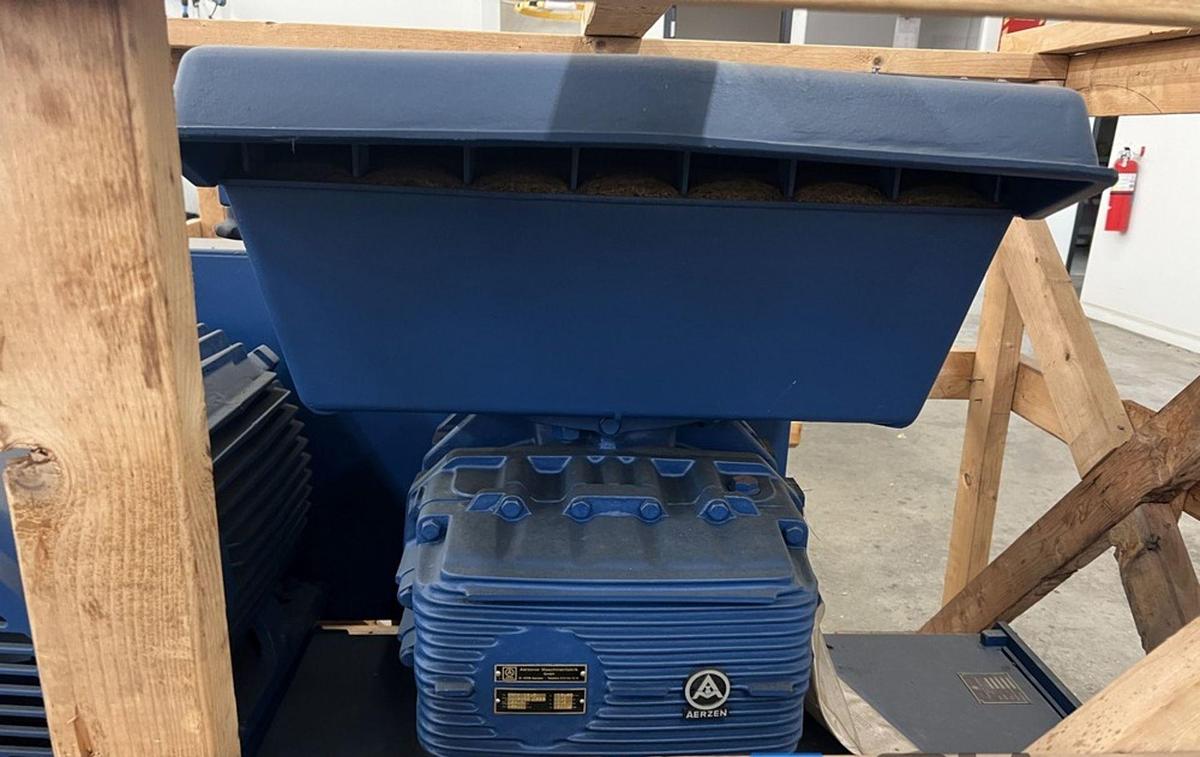

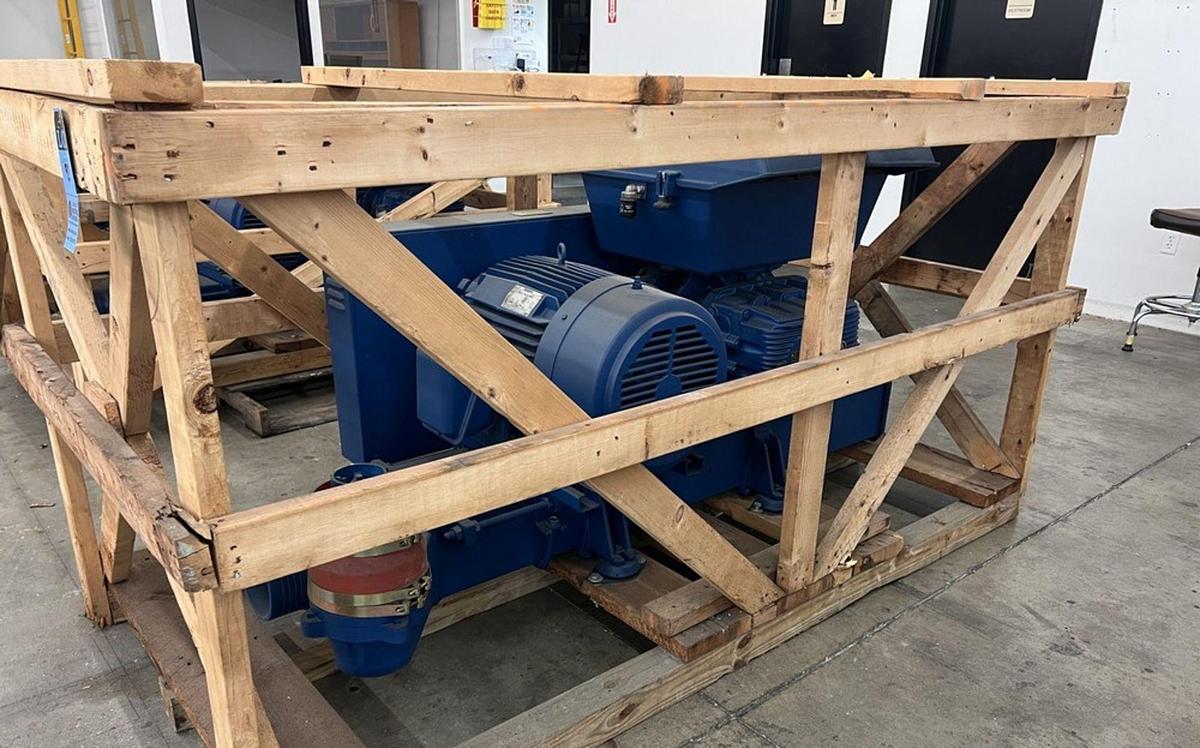

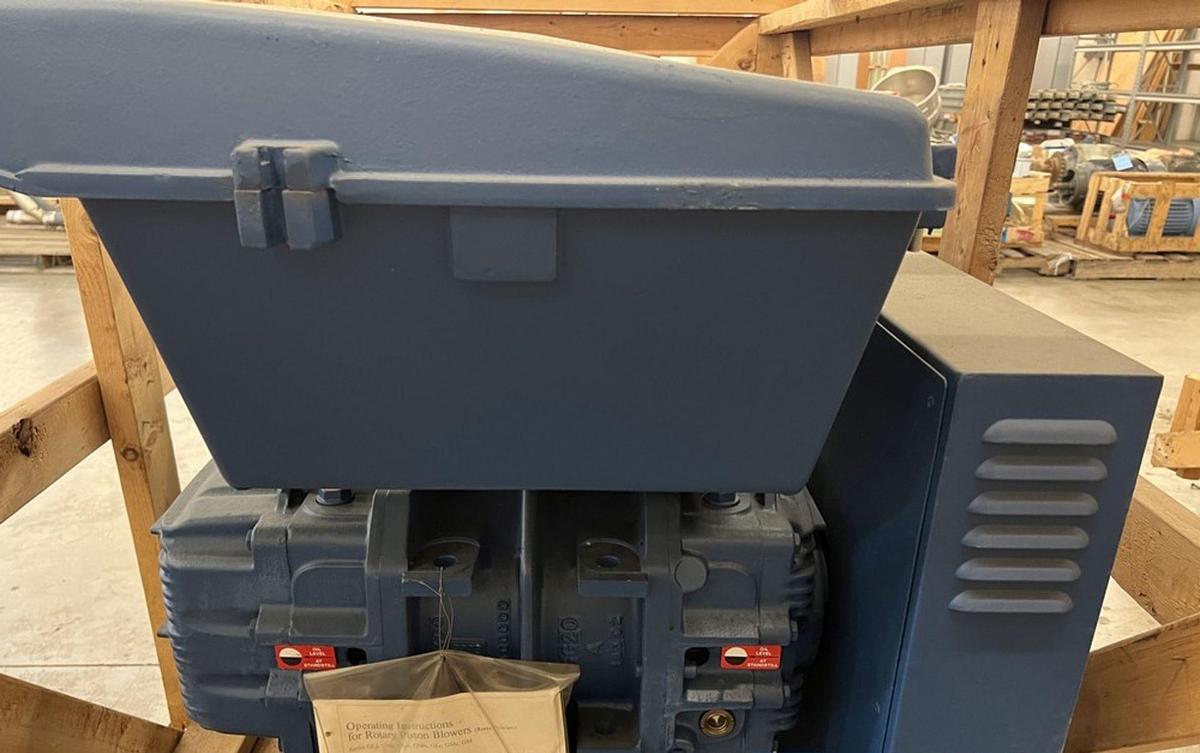

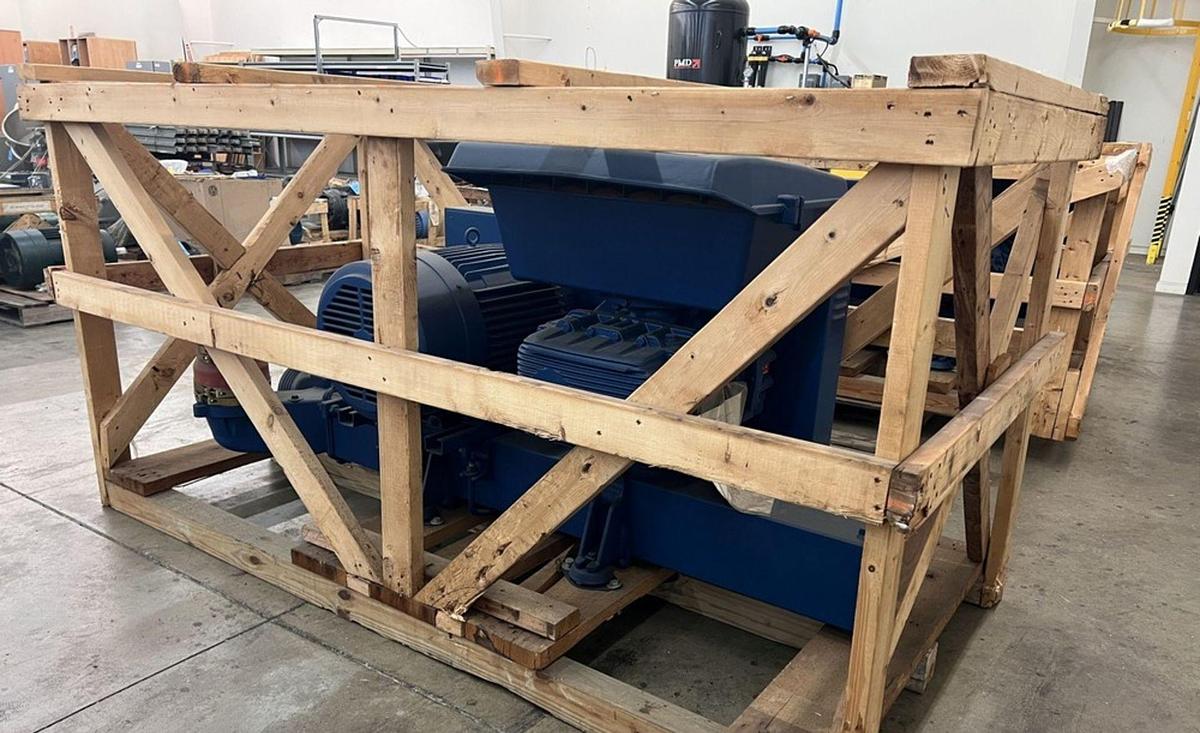

Aerzen GMA 13.6 Positive Displacement high Vacuum Blower with Base & Motor

Aerzen GMA 13.6 Positive Displacement high Vacuum Blower with Base & Motor

O1: 15.40 m3 Min

P1: 1.0 bar

P2: 0,8 bar

P 200 mbar

Shaft Power: 24 kw

Speed 2200 rpm

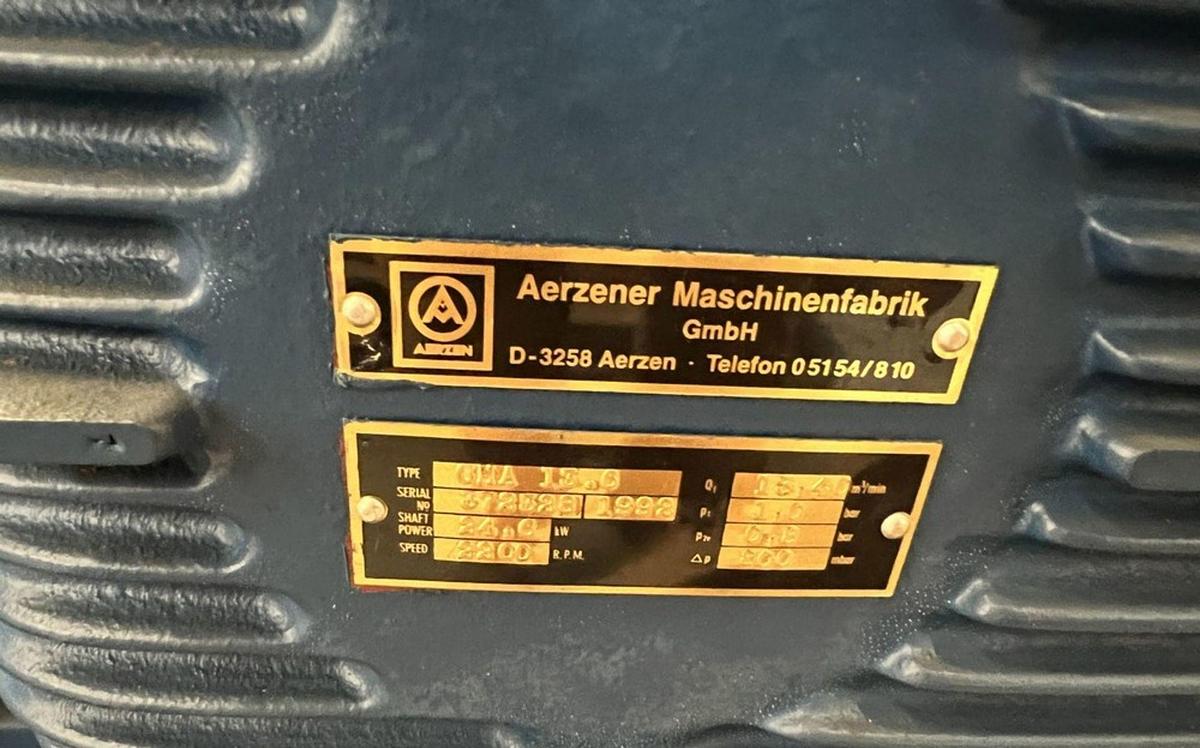

Serial: 372E28

With Filter and Motor

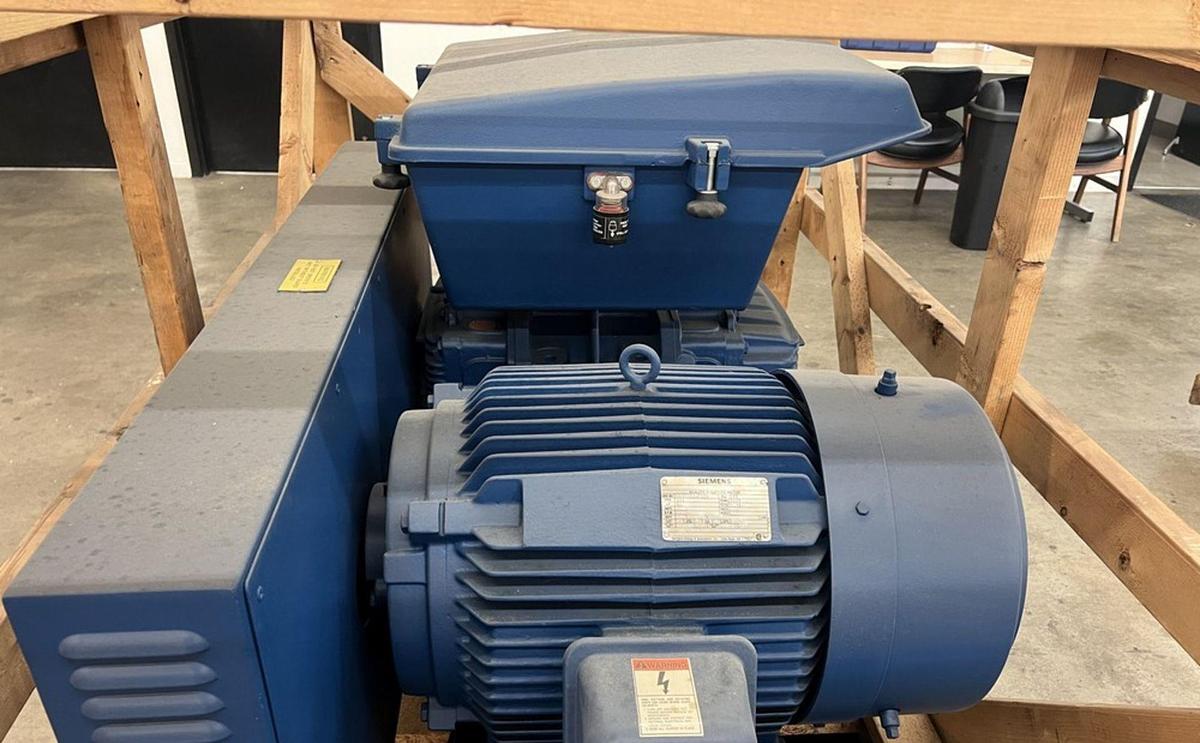

Siemens Motor

HP: 50

RPM: 1760

Volts: 460

Product Overview

• AERZEN specializes in positive displacement blowers, with a history dating back to 1868, establishing itself as a leader in compressor technology.
• The HV-type blowers are designed for high vacuum applications, capable of handling various gases with intake volume flows ranging from 180 m³/h to 97,000 m³/h and pressure ranges from 10^-3 mbar abs. to approximately 200 mbar abs.
• The blowers are suitable for diverse applications, including vacuum coating technology, chemical processes, metallurgy, steel degassing, and more.

Technical Features and Design

• AERZEN blowers feature high-quality construction with fluoro rubber O-ring seals, nodular iron housing, gastight rotary pistons, and air cooling.
• Lubrication is provided by splash lubrication using mineral or PFPE oil, with a special oil slinger-piston ring-labyrinth seal enhancing performance.
• The design includes a neutral chamber for condensate management and can be purged with seal gas for improved sealing.
• The blowers are driven by direct coupling with energy-efficient IE 3 motors, certified for various international markets.

Safety and Compliance

• AERZEN's HV series blowers are ATEX certified according to Directive 2014/34/EU, ensuring safety in potentially explosive environments, including zone 0.
• The blowers are designed to operate efficiently under high mechanical loads, significantly reducing pumping-down times.

Customer Benefits

• The extensive range of 19 blower sizes allows for easy selection based on specific volume flow requirements.
• AERZEN's blowers are recognized for their reliability, with over 35,000 units in use globally, supported by a comprehensive sales and service network.
• The blowers offer an excellent price-performance ratio, ensuring customers achieve sustainable market success.

Applications and Market Reach

• Key application fields include vacuum coating, chemical processing, metallurgy, packaging, electronics, and automotive industries.
• AERZEN's global presence, with 50 subsidiaries and over 2,500 employees, enhances its ability to meet diverse customer needs and adapt to market demands.

Innovative Design and Customization

• AERZEN employs advanced software to optimize pump combinations, focusing on energy efficiency and thermal management.
• The modular design allows for various motor frame sizes, expanding the range of applications and customization options for specific customer requirements.

Performance and Efficiency

• The blowers are engineered for high energy efficiency, with standard IE 3 motors that comply with international energy standards.
• AERZEN emphasizes continuous innovation in compressor technology, maintaining its position as a market leader through ongoing development and customer feedback.

Company Background

• Founded in 1864, AERZEN has a rich history of innovation, including the first positive displacement blower in Europe and advancements in turbo and screw compressor technology.
• The company is committed to reliability, efficiency, and technological expertise, positioning itself as a key player in the global compressor market.

AERZEN continues to set high standards in vacuum technology, ensuring that its products meet the evolving needs of various industries while providing exceptional performance and safety
