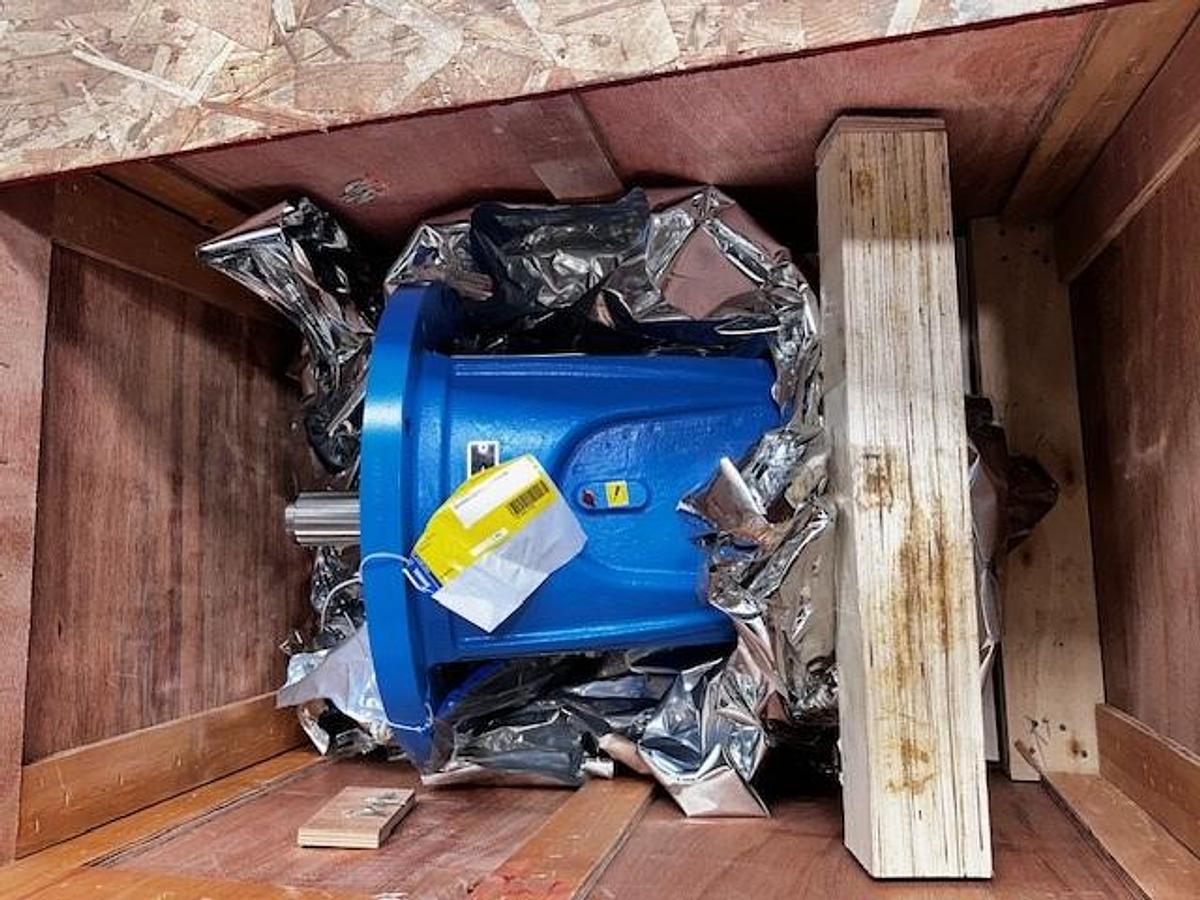

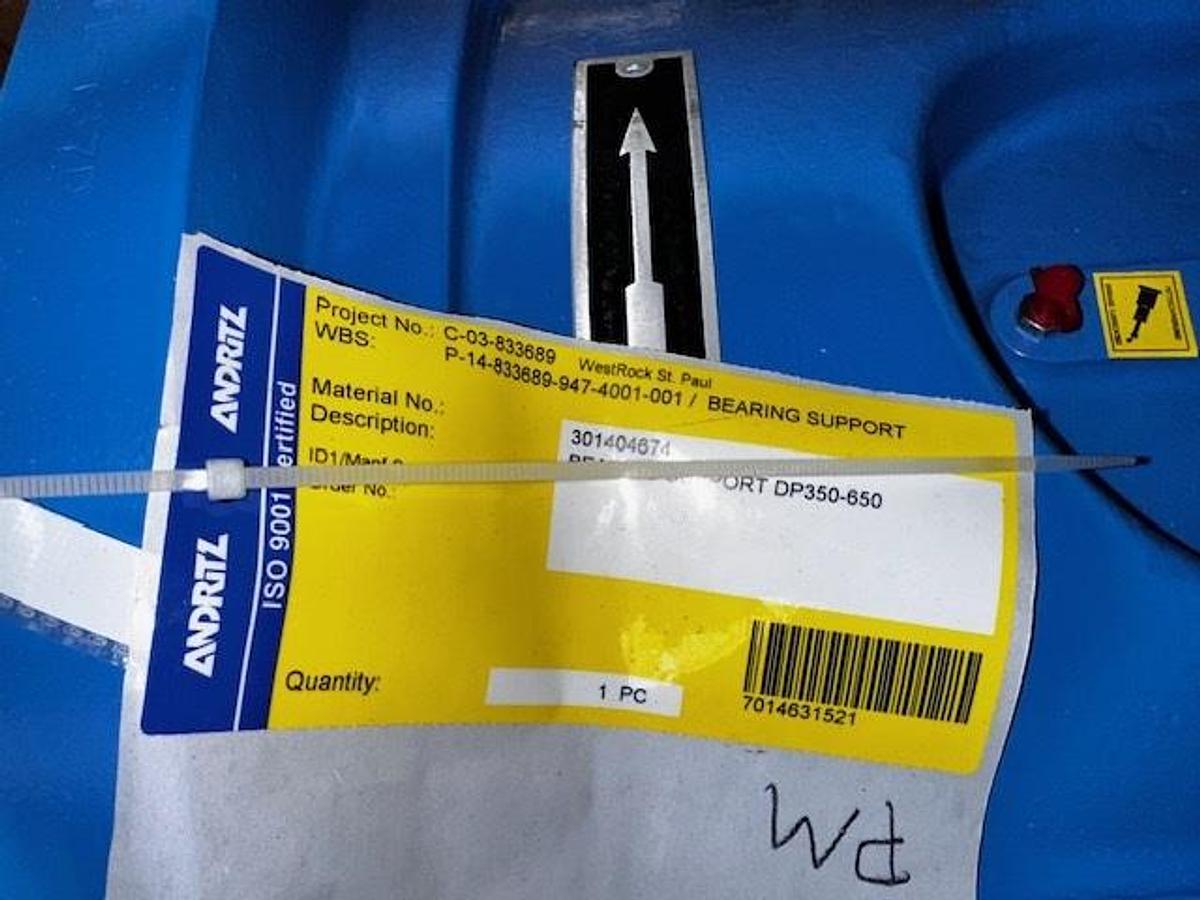

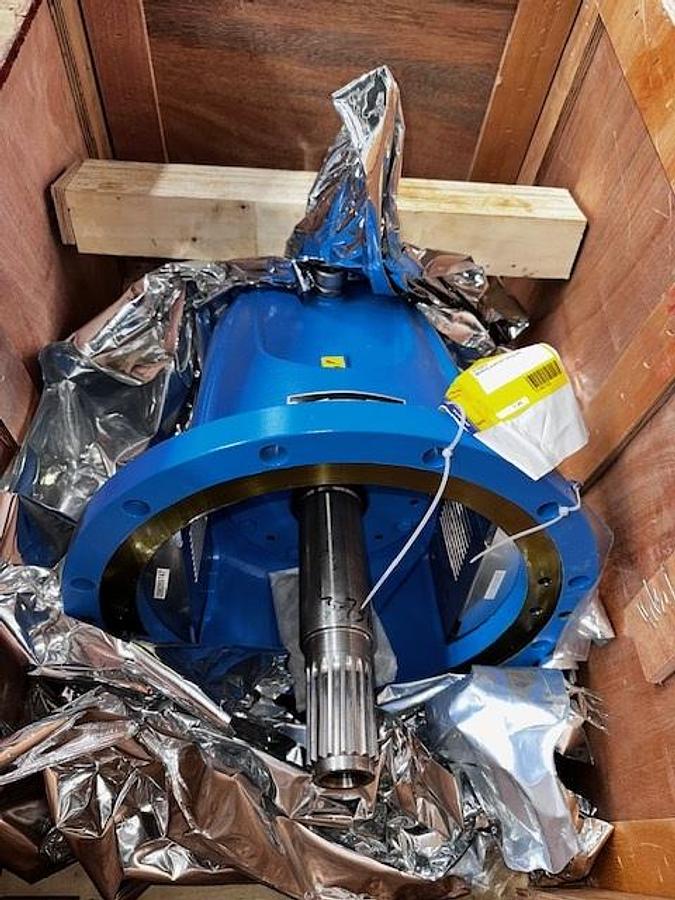

Andritz DP350-650 Detrashing Pump Bearing Housing

Andritz DP350-650 Detrashing Pump Powe Ends

2 available

Key Specifications

Design Capacity: Up to 3,960 gal/min (or approximately 5,000 m³/h, a typical maximum for the DP series).

Rotor/Impeller Diameter: The rotor has a 25.5" diameter.

Motor Power: This specific model is often paired with a 100 hp drive motor.

Nozzle Diameter: It features a 14" diameter delivery, and a 14" diameter reject nozzle.

Material: It is typically constructed from robust materials like stainless steel for wear resistance in abrasive applications.

Operational Environment (DP Series)

According to general Andritz documentation, the detrashing pumps are designed for tough conditions in pulp and paper mills.

Media Consistency: The pumps are optimized for stock consistencies up to 2%.

Media Type: They handle contaminated media and pulp suspensions with some solids content.

Operating Conditions: The system operates as part of a continuous low-consistency pulping process, known as the FibreGuard system, designed for reliable operation and long component life.
